Star WebPRNT User's Manual

How to use Star Cloud Services (Android) -Star WebPRNT Browser -

Star Cloud Services enables you to upload data to be printed by the Star WebPRNT Browser (iOS/Android) to the Star cloud server and you can refer to uploaded receipt data by using the AllReceipts app.

  1. To use Star Cloud Services, you are required to register your Star Cloud Services account in advance. You can complete your registration from the following web site.

    https://www.starcloudservices.com/

  2. Check if the device you are using is connected to the internet.
    A network connection is required to use Star Cloud Services. Depending on the connection state, a printed receipt sometimes cannot be uploaded on the Star cloud server even though it is provided with a QR code.
  3. Follow the steps of “How to use -Star WebPRNT Browser- “on the following web site and try printing.

    How to use -Star WebPRNT Browser -

  4. Tap the menu iconand select ”Settings"from the menu.
  5. Check the printer model.
    When using SM-S or SM-T series, please select StarPRNT emulation. ESC/POS emulation does not support Star Cloud Services.
  6. Configure receipt upload settings for Star Cloud Services.
    Select "STAR CLOUD SERVICES" from the Settings menu.

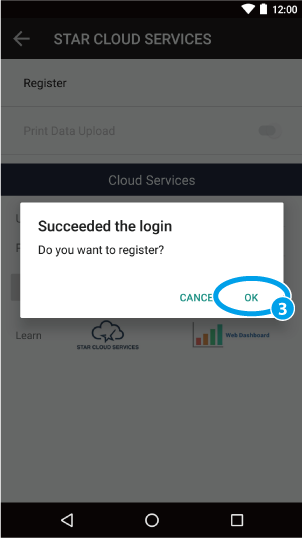

  7. Log in to Star Cloud Services and register a device.

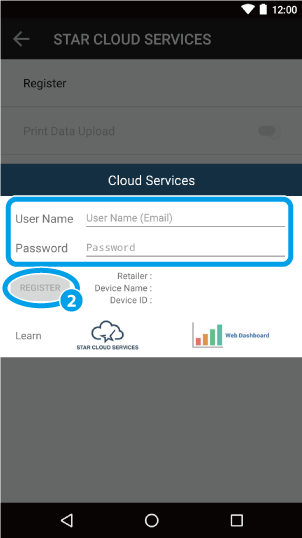

    Tap the Register to display a registration dialog. Enter your username and password and tap “Register”. After logging in successfully, register a device. After the device registration is complete, you can configure the receipt upload settings.

    ComparisonReceiptSesign 設定画面
    ComparisonReceiptSesign 設定画面
  8. Set whether receipt data should be uploaded or not.
    When “Print Data Upload” is set to ON, a QR code will be applied on a printed receipt and print data will be uploaded to the Star cloud server.
  9. Set a print content to be printed by the Star WebPRNT Browser.
    Receipt + Information + QRCode
    prints receipt data, information logo and a QR code.
    Information + QRCode
    prints information logo and a QR code.
    QRCode Only
    prints a QR code only.
  10. Set a character code of receipt data to be uploaded.
    Standard
    for upload in English, French, Portuguese, Spanish or German.
    Japanese
    for upload in Japanese.
    * Chinese and Korean receipt data is not supported.
  11. Set the print width of the printer, if necessary.
    It is not necessary to change the print width normally, which is automatically set to the default value when you select a printer model. If you have changed the print width of the printer, enter the print width value (dot).
    Different print width settings may cause a failure of uploaded receipt data.
  12. Return to the top page and print a sample receipt from “Try WebPRNT”.
  13. Install the “AllReceipts” from PlayStore.
  14. Scan a QR code on the receipt by the AllReceipts app and refer to the uploaded receipt data.
